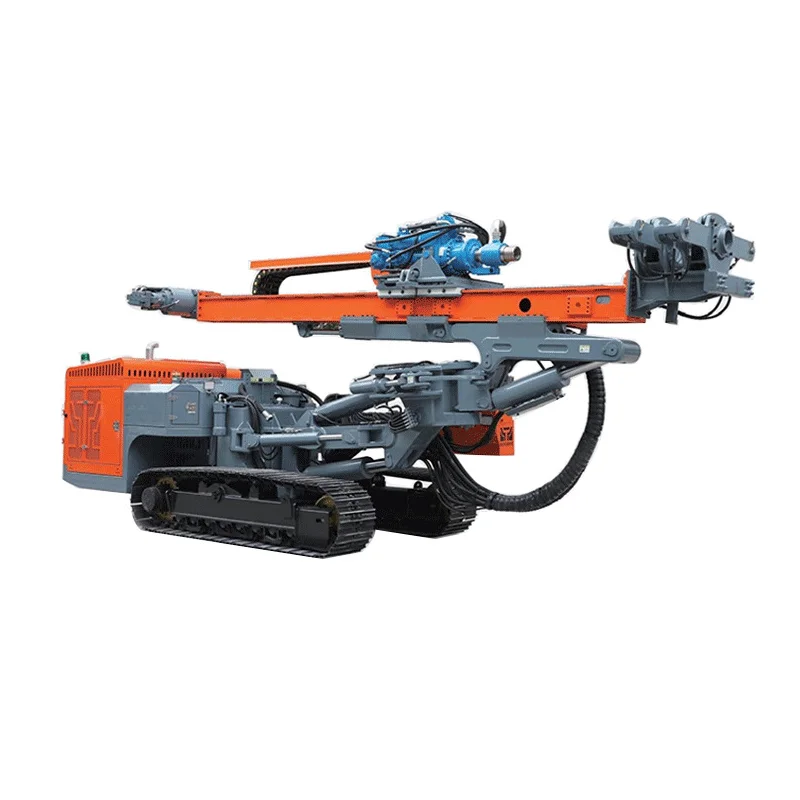

RM-360 fully hydraulic multifunctional drilling rig is widely used in micro pile drilling, ground source heat pump wells, precipitation wells, urban deep foundation pit support, recyclable auxiliary cables, anti-floating anchors, roadbed reinforcement, advanced exploration drilling, subway consolidation grouting, highway and railway slope management auxiliary cable reinforcement, steep road pipe shed advanced support, hydropower engineering dam reinforcement and dam body anti-seepage treatment, drainage holes, mine and quarry blasting holes and other projects. And it has micro pile foundation technology, we can regard it as a small diameter bored pile, the pile body specification is usually 150mm~300mm in diameter, the pile length is within 30 meters, and the layout forms include various arrangements of straight piles and mesh structure inclined piles. Micro pile foundation is a ground treatment method that uses a sliding drill rod to drill and pour concrete into the hole. It is widely used in foundation engineering fields such as buildings, bridges, roads and bridges, airports, and mines.
RM can provide you with professional services and more favorable prices. If you are interested in open-pit mining drilling rig products, please contact us.
Main Technique Specifications:
Description | Unit | Data | ||
Engine | Model |
|
Perkins1206J-E70TTA | |
Rated power/speed | kW | 168/(2200r/min) | ||
Max.Torque | N.m | 1092Nm(1400r/min) | ||
Fuel tank capacity | L | 260 | ||
Rotary head (HB-500C) | low operation | Max.Torque | N.m | 16000 |
Rotate speed | r/min | 42 | ||
fast operation | Max.Torque | N.m | 8000 | |
Rotate speed | r/min | 84 | ||
Max.speed | r/min | 136 | ||
Impact frequency | bpm | 1800-2400 | ||
Impact force | N.m | 800-900 | ||
Hydraulic system | Main pump Max.pull-down piston push | Mpa | 28 | |
Main pump | L/min | 180+180 | ||
Auxiliary pump | L/min | 20+16 | ||
Hydraulic oil tank capacity | L | 400 | ||
Winch | Line pull(1st layer) | kN | 10 | |
Maximum rope speed | m/min | 30 | ||
Rope diameter | mm | 12 | ||
Rope capacity | m | 40 |
Description | Unit | Data | |
Hoist&Feed system | Feed type |
|
Motor+chain |
Feed stroke | mm | 4800/6800 | |
Maximum hoist pull | kN | 115 | |
Maximum feed force | kN | 115 | |
Maximum hoist pull speed | m/min | 40 | |
Maximum feed speed | m/min | 40 | |
Undercarriage | Travelling speed | km/h | 3 |
Max.climbable gradient of the overall unit |
|
26.5 | |
Track shoe width | mm | 500 | |
Over allwidth | mm | 2250 | |
Overall length | mm | 3450 | |
Average ground pressure | kPa | 66 | |
Clamps | Nominal size | mm | 60-300 |
Maximum Clamping force | kN | 300 | |
Maximum breaking torque | kN ·m | 45 | |
Construction parameters | Max.parallel height | mm | 4000 |
Max.borehole diameter | mm | 300 | |
Max.drilling depth | m | 150 | |
Dimension in transport condition(L×W×H) | mm | 10300×2260×2900 | |
Weight of overall unit(standard configuration) | Kg | 18800 |
