Anti Floating Anchor Drilling Rig

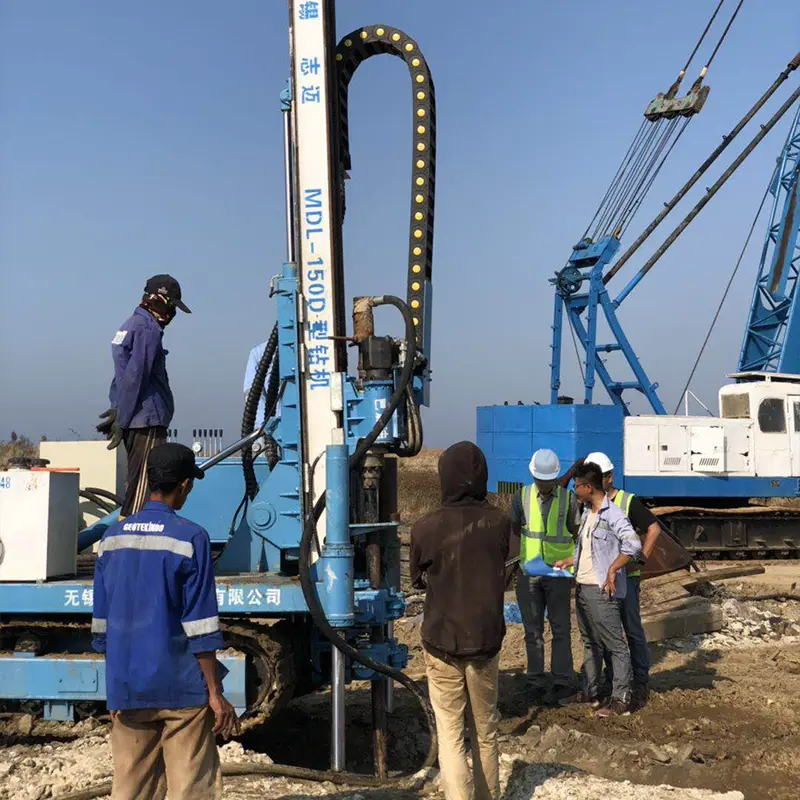

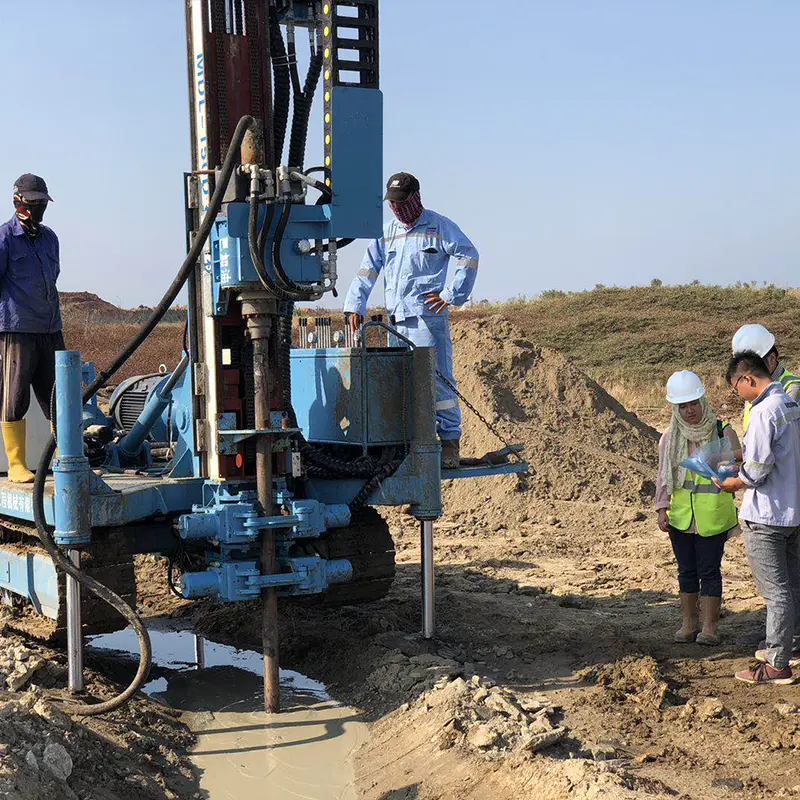

ZDL-150D is suitable for anchoring projects for urban foundation pit support and control of building displacement. The anti-floating anchor drilling rig is integral and equipped with a crawler chassis and a clamping shackle. The use of the following pipe drilling tool can be used to drill holes with the casing, and the lifting and jetting functions are added.
You can rest assured to buy anti-floating anchor drilling rigs from our factory. We will provide you with the best after-sales service and timely delivery.

Introduction of the whole machine of anti-floating anchor drilling rig

Cover: The added cover makes the appearance of the machine more scientific and protects the key hydraulic parts from pollution;
Legs: Not only does it prevent the oil cylinder from damage, but it also enhances the support strength; Operation table: The split operation table makes the operation simpler and avoids misoperation;
Tracks: Longer and stronger crawlers effectively prevent sinking and adapt to a wider range of strata; Lifting: The height of the hole can be adjusted and no longer depends on the height of the working surface; Automatic turntable: It is easier and more convenient to eliminate manual labor;
Power head: The rotator of the anti-floating anchor drilling rig is driven by dual hydraulic motors, with large output torque and a lower center of rotation than similar products, which greatly improves the balance of the drilling rig. The configured telescopic joint can greatly extend the life of the drill pipe thread; Large through-hole high-pressure faucet: A necessary device for enlarged head construction;
Cooling system: The cooling system is optimized for the special working conditions of the customer's local area to ensure that the maximum temperature of the hydraulic system does not exceed 70℃ when the outdoor temperature is 45℃.

Construction features

● The anti-floating anchor drill can be equipped with special pipe drilling tools (drill rod, casing, eccentric drill bit), and the casing is used to protect the wall and open holes in unstable formations, and the conventional ball-tooth drill bit is used to complete the hole. The drilling efficiency is high and the hole quality is good.
● The anti-floating anchor drill is mainly used for anchoring and supporting deep foundation pits. The drilling rig can also be used for jet grouting construction by replacing the jet grouting module. In addition, this machine also has strong performance in the construction of geothermal holes, dewatering wells, micro steel pipe piles and micro cast-in-place piles.
● In addition to the crawler chassis, clamping shackle and turntable, the anti-floating anchor drill also provides users with optional accessories such as jet grouting modules. Users can select and superimpose them when ordering the drilling rig to make our drilling rig more suitable for your project.

Basic performance and parameters
