Split Type Anchoring Drilling Rig

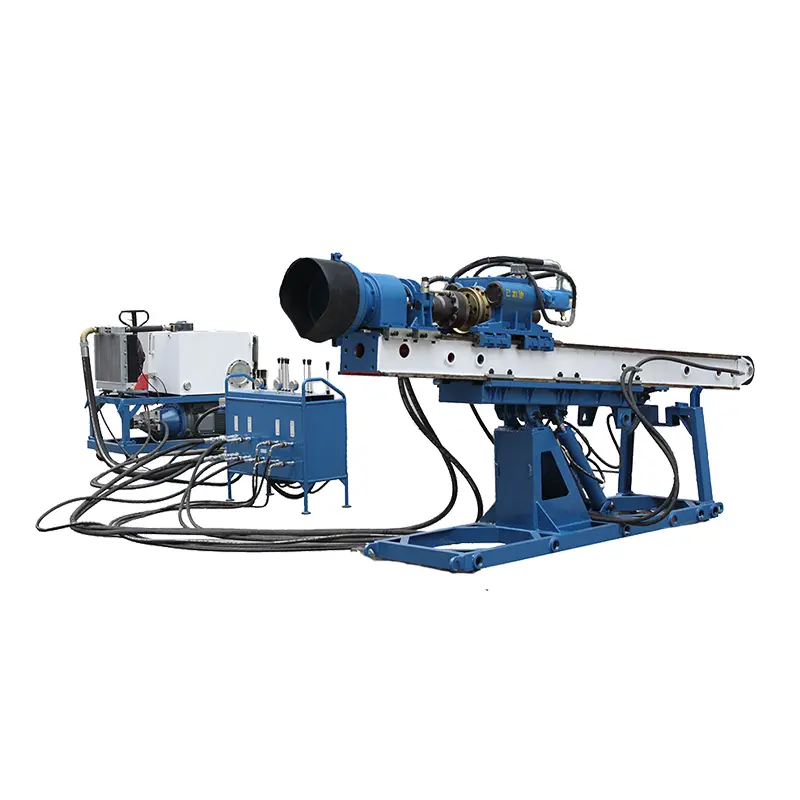

As a professional Split Type Anchoring Drilling Rig manufacturer and supplier in China, RM is willing to provide you with split anchor drilling rigs. The MDL-80A series slope anchor engineering drilling rigs are suitable for large-tonnage prestressed anchor support holes and drainage holes in hydropower station projects, railways, and highway slopes, as well as geological disaster control projects such as dangerous rock mass. The drilling rig is divided into three parts: pump station, control panel, and main machine. The split structure makes it easy to move and install; it can be operated remotely, which improves the working environment of employees. Among them, the 1200mm propulsion frame is suitable for working conditions with small construction space.

Send Inquiry

Product Description

RM is one of the famous Chinese split anchor drilling rig manufacturers and suppliers. Our factory specializes in the production of drilling rigs. Welcome to buy split anchor drilling rigs from RM. Every request from customers will be responded to within 24 hours.

The drilling rig has the following features:

1. Compact structure, light weight, easy to disassemble, easy to move and install. Good adaptability to the construction site, suitable for construction on scaffolding.

2. The split anchor drilling rig has a large torque, long stroke and high drilling efficiency.

3. Equipped with pipe drilling tools (drill rod, casing, eccentric drill bit, etc.), casing is used to protect the wall in unstable formations, and conventional ball tooth drill bits are used to drill holes. High drilling efficiency and good hole formation.

4. The split anchor drilling rig has a wide range of drilling angles, from 10° upward to 90° downward; the slide can slide forward and backward along the bottom frame, and the drilling positioning is convenient and reliable. The center of the drilling rig is low, and the drilling rig is easy to get on and off.

5. Full hydraulic control, convenient and flexible operation, saving time and effort.

6. Optional hole mouth dust collection device to reduce environmental pollution and improve the working environment.

Main Technique Specifications:

Basic parameters	MDL-80A	MDL-80A
Drilling depth	Φ90-Φ180（mm）	Φ100-Φ210（mm）
Drilling depth	50-80（m）	100-140（m）
Drill pipe diameter	Φ73/Φ89（mm）	Φ89/Φ102/Φ114（mm）
Drill pipe inclination	-10-90（°）	-10-90（°）
Rotator output speed	12/25/45/60/100/125（r/min）	25/50/100（r/min）
Rotator output torque	2500（N.m）	6500（N.m）
Rotator travel	1800（mm）	1800（mm）
Propel rack feeding process	600（mm）	600（mm）
Rotator lifting force	42.5(KN)	65(KN)
Rotator lifting speed	0-2.7 Adjustable /1.65/5.8/7.5（m/min）	0-1 Adjustable/1/7.5/8.5（m/min）
Rotator pressure	25(KN)	33(KN)
Rotator pressurizing speed	0-2.7 Adjustable /9.5/12（m/min）	0-2 Adjustable/14.5/16.5（m/min）
Input power (motor)	22+1.5+0.15（KW)	45+1.5+0.25（KW)
Shipping status(LWH）	34006501400（mm）	34006861500（mm）
Weight（Pump station + operating table + propulsion frame)	500+115+885（kg）	700+120+1100（kg）
