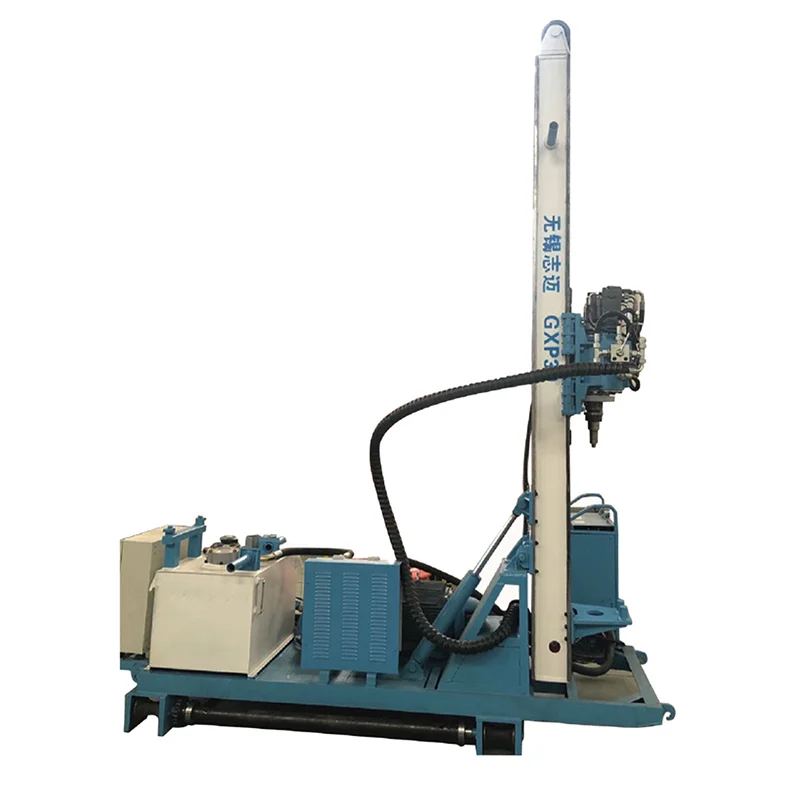

Low Frame Rotary Jet Drilling Rig
As a professional Low Frame Rotary Jet Drilling Rig manufacturer in China, you can rest assured to buy low-frame jet grouting rigs from our factory. RM will provide you with factory discount prices for our products.
Send Inquiry
Product Description
ZXP-30A series low-frame jet grouting machine is a dual-purpose drilling rig developed by RM according to market demand and suitable for high-pressure jet grouting and anchoring engineering construction technology. It is widely used in railways, highways, construction, water conservancy, power and other industries, mainly used for foundation reinforcement, anti-seepage and water blocking, maintenance of existing loads and other purposes.
Every request from customers will be responded within 24 hours, and we will provide you with the best after-sales service and timely delivery.
The low-frame jet grouting rig has the following features
● Suitable for a wide range of bottom layers, easy to operate and maintain.
● Suitable for a wide range of processes, in addition to jet grouting processes, it can also be used for anchoring process construction.
● There are many configuration components, and users can choose different performance modules according to different project development needs.
Basic performance and parameters
| Basic parameters | |
| Aperture: |
Single：400-600 (mm) Double：600-1200 (mm) Triple 800-1600 (mm) |
| Hole Depth: | 30-50(m) |
| Aperture: |
90-185（mm） |
| Hole Depth: | 50-80（m） |
| Drilling Angle: |
0-90（°） |
| Output torque: | 3600（N. m） |
| output speed: |
0-6/0-20（Adjustable）/6/20/40/50/120/150（r/min） |
| Power head lifting force: | 60（KN） |
| Power head pressure: |
30(KN) |
| Increase speed: |
0-0. 7（ Stepless adjustable）/0. 7/6（m/min） |
| Pressurization speed: |
0-1. 4（Stepless adjustable）/11/12. 4（m/min） |
| Power head stroke: |
1800（Standard Configuration, Effective length of drill pipe1500）（mm） |
| Motor power: | 22+1. 5（KW） |
| Construction status: |
3045*1370*3060（L*W*H mm） |
| Shipping status: |
3160*8930*1410（L*W*H mm） |
| Weight: | about 1300（kg） |
| Installation form: | Bulk/Monolithic |
