Jet Jet Drilling Rig

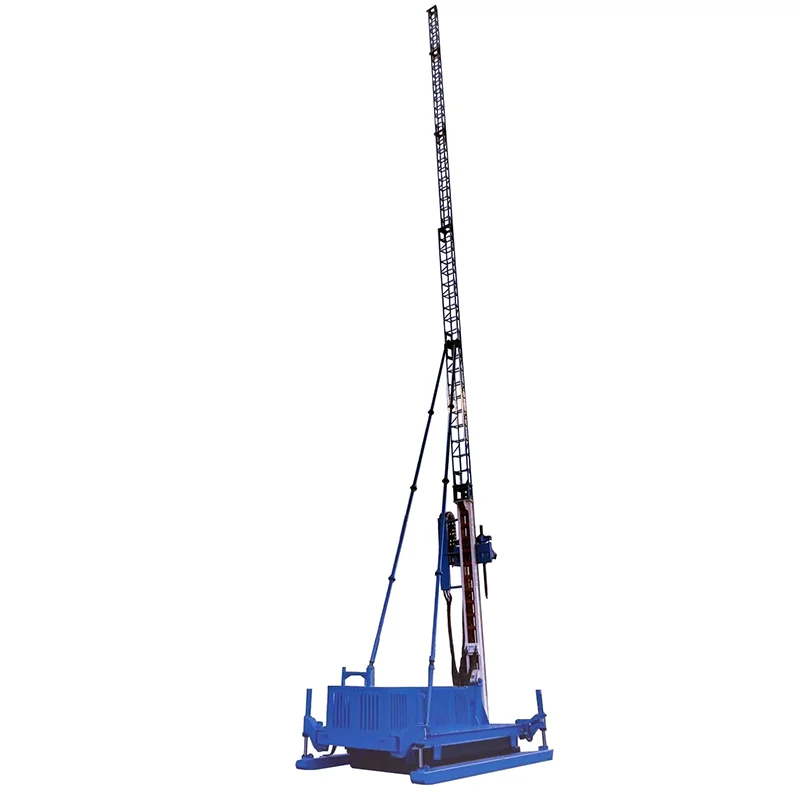

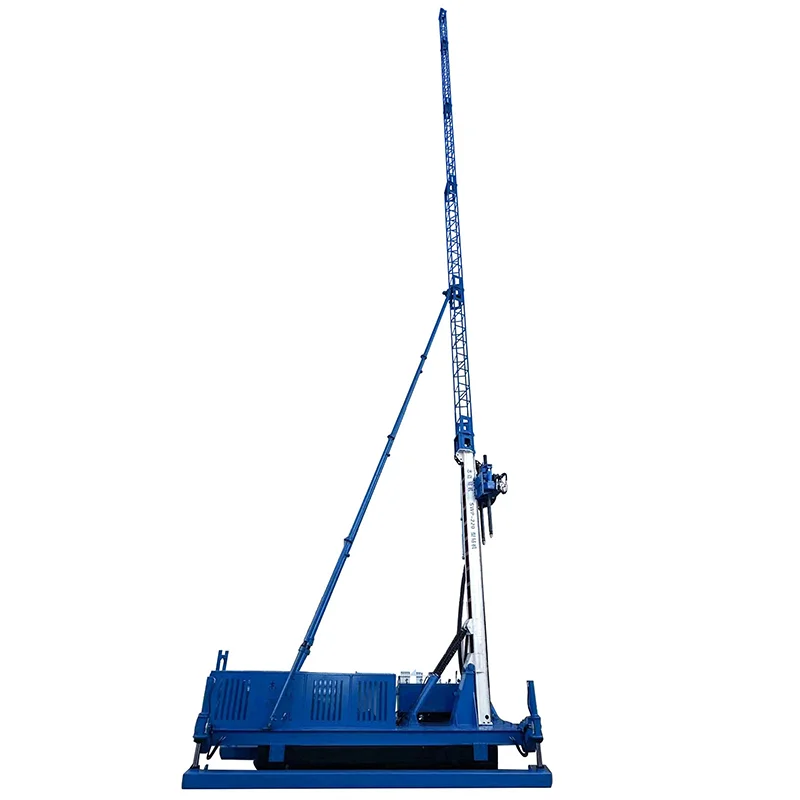

GXP-220A high-pressure jet grouting rig is a new type of jet grouting rig developed by RM according to market needs. It is currently the most advanced self-drilling jet grouting rig in China.

If you are interested in our jet grouting rig, you can consult us immediately, and every request from the customer will be responded to within 24 hours.

Main uses:

1. Soft foundation treatment

2. Water-stop curtain

Main features:

1. The jet grouting rig is equipped with a detachable 20-meter auxiliary tower

● During jet grouting construction, it can replace the elevated jet grouting, reduce the number of times the drilling tools are disassembled, save time and materials, and reduce quality risks.

● During the construction of anti-floating anchor rods, the anchor rods can be lifted, saving the cost of the crane.

● The detachable auxiliary tower can be disassembled during the construction of inclined anchor cables without affecting other functions of the drilling rig.

● During the construction of short anchor rods, one rod can be used to the end, saving time and effort.

● The auxiliary tower is a standardized design, and the 5 sections can be freely combined into 5 meters, 15 meters, and 30 meters.

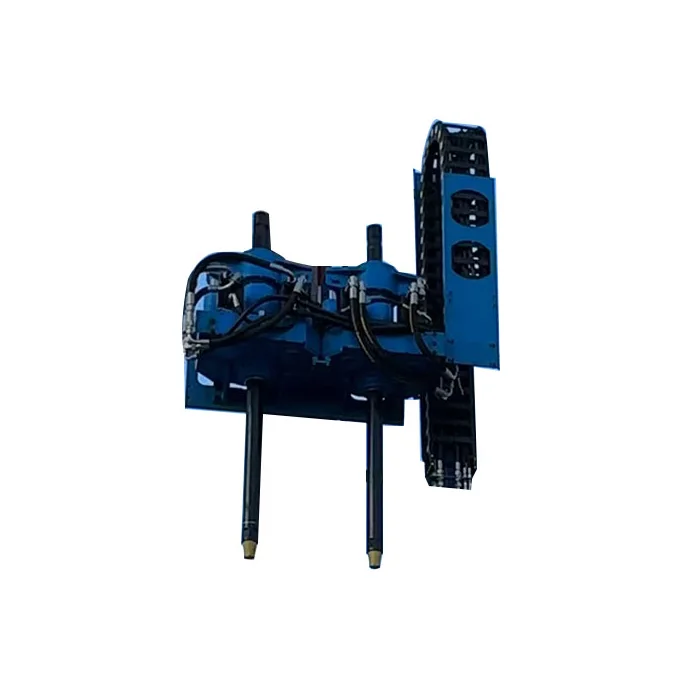

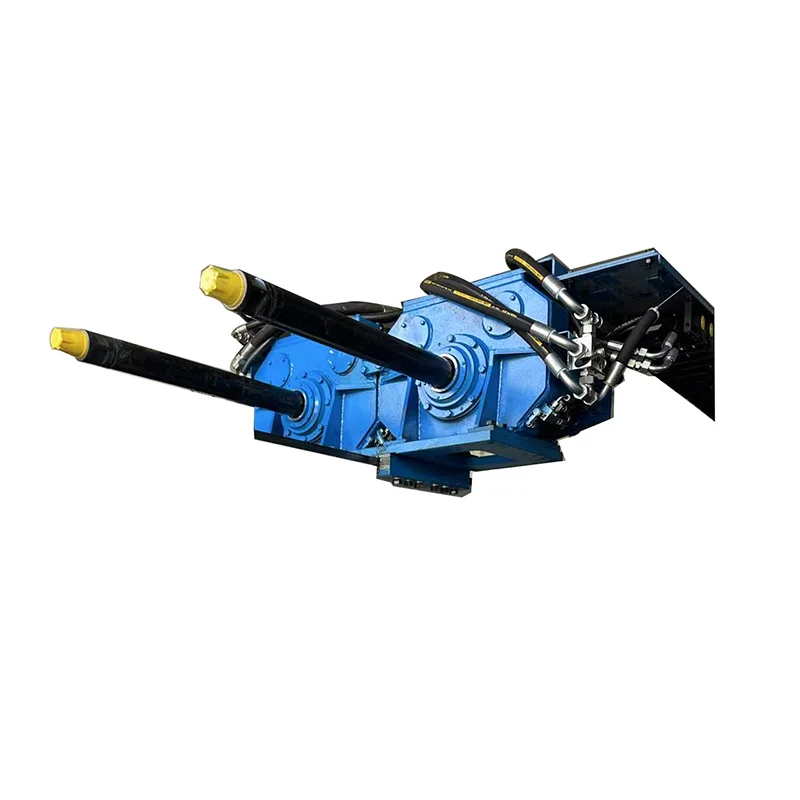

2. Large through-hole rotator of the jet grouting rig

● The through-hole diameter is 92mm, and the 89 drill rod can pass smoothly. It can achieve triple jet grouting construction and anchoring construction.

● The jet grouting rig can also use ordinary 89 steel pipes for anchoring construction.

● The hydraulic chuck structure allows the replacement of drilling tools to be convenient and free. No need to worry about replacing transition joints.

● The high-torque power head, combined with our enhanced jet-jet drilling tools, can be used in most strata for jet-jet construction without the need for a lead hole, saving a lot of cost and time.

2. (GXP-220A) Drilling parameter meter can be optionally equipped to achieve real-time recording of 11 construction parameters such as slurry pressure, lifting speed, and rotation speed.

Main Technique Specifications:
