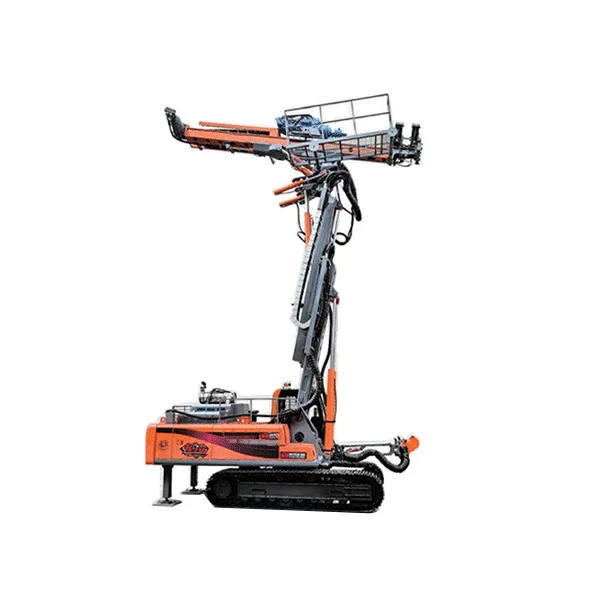

Hydraulic Multifunctional Drilling Rig

The following is an introduction to the hydraulic multifunctional drilling rig. I hope it can help you better understand the hydraulic multifunctional drilling rig. RM welcomes new and old customers to continue to cooperate with us to create a better future together!

Send Inquiry

Product Description

RM-800 hydraulic multifunctional drilling rig can perform high-pressure jet grouting. High-pressure jet grouting is a new method of strengthening soil developed on the basis of ordinary chemical grouting. It uses the jet action to cut and mix the soil, change the structure and composition of the original stratum, and at the same time pour cement slurry or composite slurry to form a condensate, so as to achieve the purpose of strengthening the foundation and preventing seepage.

Welcome to the RM factory to purchase the latest best-selling, low-priced, high-quality hydraulic multifunctional drilling rigs, and look forward to cooperating with you.

Hydraulic multifunctional drilling rig Construction process

Drilling and grouting pipe Lifting jet grouting The jet grouting is finished and the pile is formed.

Main Technique Specifications:

Description			Unit	Data
Engine	Model			L9CS4264C(IV)
	Rated power/speed		kW	179/(2200r/min)
Rotary head (HB-500C)	low operation	Max.Torque	N.m	19000-22000
		Rotate speed	r/min	42
	fast operation	Max.Torque	N.m	9500-11000
		Rotate speed	r/min	84
		Max.speed	r/min	146
	Impact frequency		bpm	1200-1500/1800-2300
	Impact force		N.m	950-1200
Hydraulic system	Main pump Max.pull-down piston push		Mpa	28
	Main pump		L/min	180+180
	Auxiliary pump		L/min	20+16
	Hydraulic oil tank capacity		L	400
Winch	Line pull(1st layer)		kN	10
	Maximum rope speed		m/min	30
	Rope diameter		mm	12
	Rope capacity		m	40

Description		Unit	Data
Hoist&Feed system	Feed type		Motor+chain
	Feed stroke	mm	4800
	Maximum hoist pull	kN	100
	Maximum feed force	kN	100
	Maximum hoist pull speed	m/min	40
	Maximum feed speed	m/min	40
Undercarriage	Travelling speed	km/h	3
	Max.climbable gradient of the overall unit		26.5
	Track shoe width	mm	600
	Over allwidth	mm	2820
	Overall length	mm	4080
	Average ground pressure	kPa	66
Clamps	Nominal size	mm	60-300
	Maximum Clamping force	kN	300
	Maximum breaking torque	kN ·m	45
Construction parameters	Max.parallel height	mm	11500
	Max.borehole diameter	mm	300
	Max.driling depth	m	200
Dimension in transport condition (L×W×H)		mm	1150028003150
Weight of overall unit (standard configuration)		Kg	32000
