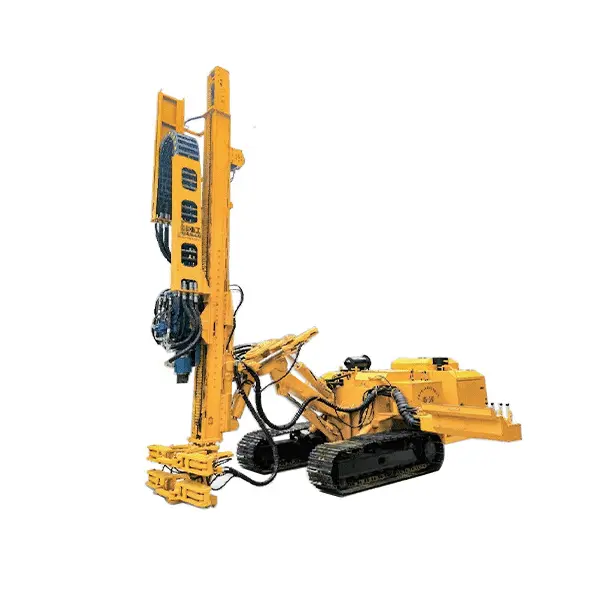

Cable Anchor Drilling Rig

RM was officially established in 2014. As one of the professional Chinese Cable Anchor Drilling Rig manufacturers, we are strong and well-managed. In addition, we have our own export license. RM is located in Wuxi City, Jiangsu Province, China, with a professional and mature work team. We always guarantee you our high-quality service.

Send Inquiry

Product Description

RM-260 has anchoring technology and can be used in construction sites such as tunnels, mines, and road slopes. Anchoring technology is to fix one end of the tension rod in the rock and soil layer of the slope or foundation, and the other end is connected to the engineering building, so as to use the stratum anchoring force to maintain the stability of the building (or rock and soil layer). At present, this technology is widely used in the support and anchoring of building foundation pits and road slopes.

As a professional cable-stayed anchor drilling rig manufacturer, RM adheres to the principle of quality-oriented and customer-oriented. We sincerely welcome your letters, calls, inspections and business negotiations.

Main Technique Specifications:

Description			Unit	Data
Engine	Model			SC9DK240G4(IV)
	Rated power/speed		kW	162/(2200r/min)
	Model			SC9DK240G3(IⅢI)
	Rated power/speed		kW	162/(2200r/min)
Rotary head (HB-500C)	ow operation	Max.Torque	N.m	15000
		Rotate speed	r/min	48
	fast operation	Max.Torque	N.m	7500
		Rotate speed	r/min	97
		Max.speed	r/min	150
	Impact frequency		bpm	1800-2400
	Impact force		N.m	800
Hydraulic system	Main pump Max.pull-down piston push		Mpa	28
	Main pump		L/min	160+160
	Auxiliary pump		L/min	20+16
	Hydraulic oil tank capacity		L	400
Winch	Line pull(1st layer)		kN	10
	Maximum rope speed		m/min	30
	Rope diameter		mm	12
	Rope capacity		m	40

Description		Unit	Data
Hoist&Feed system	Feed type		Hydraulic cylinder+chain
	Feed stroke	mm	4000
	Maximum hoist pull speed	m/min	29
	Maximum feed speed	m/min	58
	Thrust/uplift force	KN	55/100
Undercarriage	Travelling speed	km/h	3
	Max.climbable gradient of the overall unit		26.5
	Track shoe width	mm	450
	Over allwidth	mm	2150
	Overallength	mm	2770
	Average ground pressure	kPa	65
Clamps	Nominal size	mm	60-300
	Maximum Clamping force	KN	300
	Maximum breaking torque	KN ·m	45
Construction parameters	Max.parallel height	mm	3500
	Max.borehole diameter	mm	250
	Max.drilling depth	m	80
Dimension in transport condition(L×W×H)		mm	680022002600
Weight of overall unit(standard configuration)		Kg	10500
