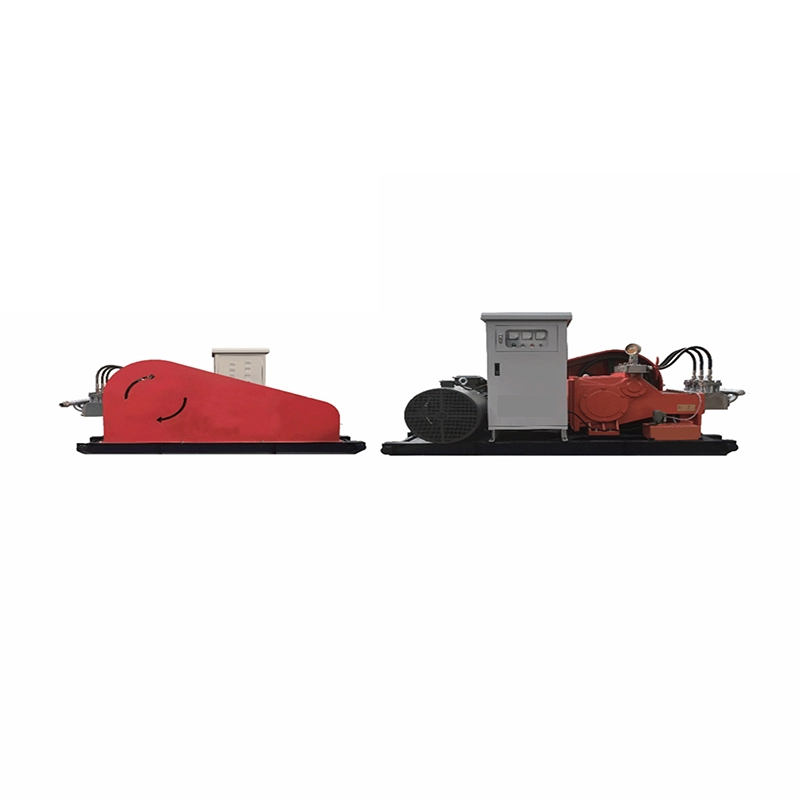

Tube Rotary Spray Pump

RM warmly welcomes you to buy double Tube Rotary Spray Pump from our factory. We follow the principle of assured quality, conscientious price and warm service.

Send Inquiry

Product Description

Double tube rotary jet pump is the latest generation product of various types of mud pumps. The hydraulic end of the double tube rotary jet pump adopts a split pump head, which is easy to disassemble. The power end adopts an integral rolling bearing transmission, super power end, low noise and environmentally friendly product. The seal life can be increased by 60%. Low temperature rise, 24-hour continuous operation, simple maintenance, and higher performance-price ratio. It is suitable for high-pressure rotary jet grouting, curtain grouting, retaining cofferdam, mine plugging, well barrel wall protection, slope anchoring and other fields of foundation treatment.

If you are interested in double tube rotary jet pump, welcome to buy double tube rotary jet pump from RM. Every request of customers will be answered within 24 hours.

XPB-90EX variable frequency 4-level motor performance parameters

Maximum motor speed		1480r/min		Plunger diameter		80mm
Theoretical flow		Motor power (kW )					Plunger diameter（mm）
Theoretical flow		55	75	90	110	132
m³/h	L/min	Rated discharge voltage (Mpa)
5.6	94	33	45	54	60	60	50
6.8	114	27	37	44	54	56	55
8	135	23	31	37	46	50	60
9.5	159	19	26	32	39	45	65
11	184	16	23	27	33	39	70
12.7	212	14	20	24	29	34	75
14.4	241	12	17	21	25	30	80

XPB-90EX variable frequency 6-level motor performance parameters

Maximum motor speed		980r/min		Plunger stroke		80mm
Theoretical flow		Motor power(kW )					Plunger diameter（mm）
Theoretical flow		55	75	90	110	132
m3/h	L/min	Rated discharge voltage (Mpa)
3.7	62	48	60	60			50
4.5	75	40	55	55	60		55
5.3	89	33	45	45	56	60	60
6.3	105	28	40	40	48	56	65
7.2	121	24	35	35	40	48	70
8.3	139	21	30	30	35	42	75
9.5	159	18	26	26	31	35	80

XPB-90EX electromagnetic speed regulating motor performance parameters

		1320r/min		Plunger stroke		80mm
Theoretical flow		Motor power (kW )					Plunger diameter（mm）
Theoretical flow		55	75	90	110	132
m3/h	L/min	Rated discharge voltage (Mpa)
13	217	12	17	20	25	30	80
11	188	14	19	23	28	34	75
9.9	165	16	22	26	32	39	70
8.6	141	18	25	31	38	45	65
7.1	119	22	30	37	45	50	60
6.0	100	26	37	44	53	56	55
5.0	83	32	44	53	60	60	50

XPB-90EX variable frequency 4-level motor performance parameters

Maximum motor speed		1480r/min		Plunger stroke		80mm
Theoretical flow		Motor power(kW )					Plunger diameter（mm）
Theoretical flow		55	75	90	110	132
m3/h	L/min	Rated discharge voltage (Mpa)
4.28	71	42	58	70	85	102	50
5.17	86	35	48	57	70	84	55
6.15	102	29	40	48	59	71	60
7.23	120	25	34	41	50	60	65
8.38	140	22	30	35	43	52	70
9.6	160	19	26	31	38	45	75
10.9	182	17	23	27	33	40	80

Small wheel 212 Big Wheel 800 Sprint 151

XPB-90EX variable frequency 6-level motor performance parameters

Maximum motor speed		980r/min		Plunger stroke		80mm
Theoretical flow		Motor power (kW )					Plunger diameter（mm）
Theoretical flow		55	75	90	110	132
m3/h	L/min	Rated discharge voltage (Mpa)
3.15	53	58	79	94	115	138	50
3.8	64	48	65	78	95	114	55
4.5	75	40	55	66	80	96	60
5.33	89	34	47	56	68	81.9	65
6.2	105	29	40	48	59	70.6	70
7.1	118	26	35	42	51	61.5	75
8.0	134	23	31	37	45	54	80

Small whee 236 Big Wheel 800 Sprint 111

XPB-90EX variable frequency 4-level motor performance parameters

Maximum motor speed		1480r/min		Plunger stroke		80mm
Theoretical flow		Motor power (kW )					Plunger diameter（mm）
Theoretical flow		55	75	90	110	132
m3/h	L/min	Rated discharge voltage (Mpa)
4.76	79	38	52	62	76	92	20
5.76	96	31	43	52	63	76	55
6.84	114	26	36	43	56	64	60
8.05	134	23	31	37	45	65	65
9.3	155	20	27	32	39	47	70
10.7	178	17	23	28	34	41	75
12.2	203	15	20	24	30	36	80

Small whee 236 Big Whee 800 Sprint 168

XPB-90EX variable frequency 6-level motor performance parameters

Maximum motor speed		980r/min		Plunger stroke		80mm
Theoretical flow		Motor power (kW )					Plunger diameter（mm）
Theoretical flow		55	75	90	110	132
m3/h	L/min	Rated discharge voltage (Mpa)
2.82	47	64	88	105	129	154	50
3.4	57	53	72	87	106	127	55
4.07	68	45	61	73	89	107	60
4.76	80	38	52	62	76	91	65
5.5	92	33	45	54	66	79	70
6.4	106	29	39	47	57	68	75
7.2	120	25	34	41	50	60	80
