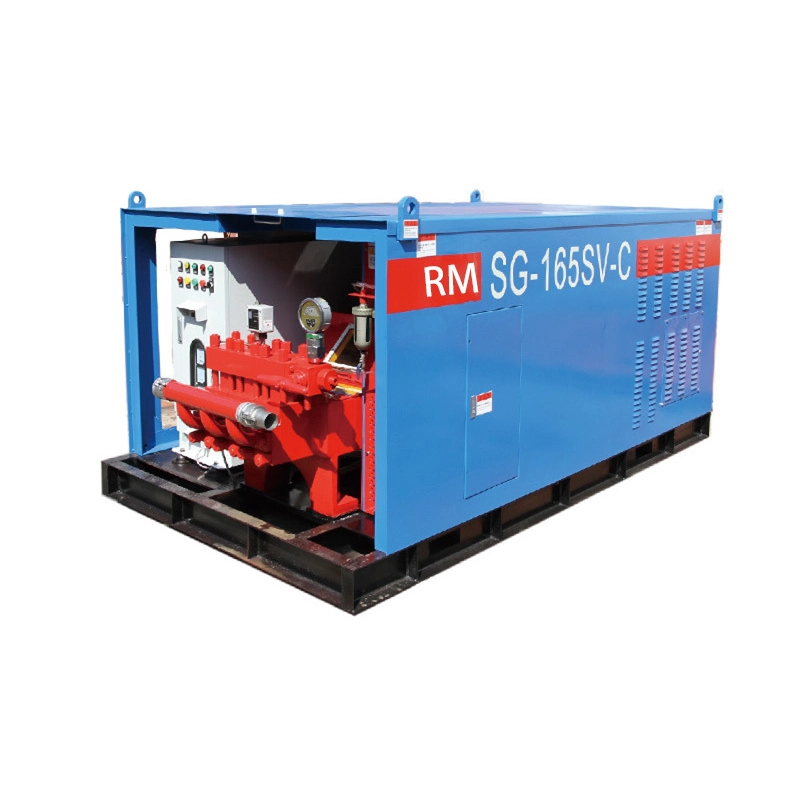

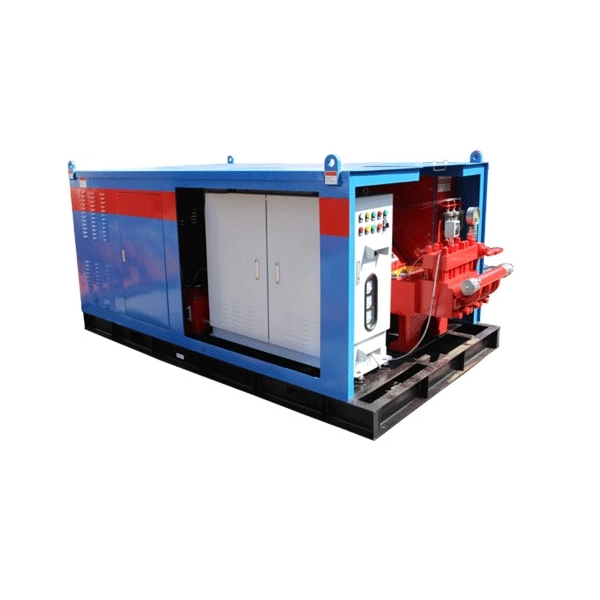

The high pressure pump adopts an integral hoisting cover to prevent some extreme weather from affecting the equipment too much, and is convenient for disassembly, maintenance, and hoisting. Equipped with a 132kw variable frequency motor, flow meter, and pressure sensor to accurately provide the equipment with information such as revolutions, hertz, flow pressure, etc. The use of ultra-high pressure shutdown, automatic ventilation cooling system, and plunger lubrication system (forced lubrication, complete oil system including oil tank, oil filter, oil pump, oil separator and pipe) provides customers with more devices that are beneficial to the operation of the equipment, protects the equipment, and is easy to operate.
Welcome to wholesale or customize high pressure pumps from RM factory at any time. RM will provide you with factory discount prices for our products.
Performance parameters
Motor power (kW) | 132 kw Frequency conversion motor |
Plunger stroke (mm) | 80 |
Plunger diameter (mm) | 70 |
Pressure (Mpa) | 43 |
Flow (L/min) | 165 |
Note: All data are manually measured and there may be certain errors. Please refer to the actual product.
